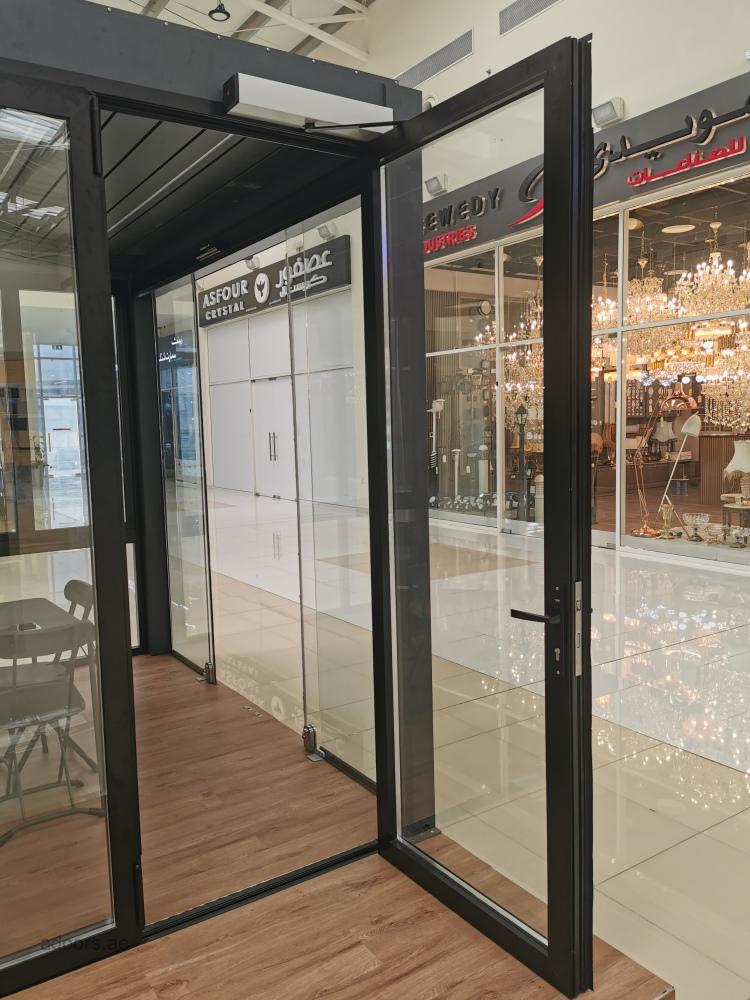

AD-iSWING Automatic Swing Door

THE ISWING AUTOMATIC DOOR OPERATOR OFFERS A HIGH STANDARD OF PERFORMANCE WITHIN A SLIMLINE DESIGN.

The low height of only 88mm allows the iSwing Operator to be fitted to a transom header made of two standard 400 series frames fitted together.
The system comes with both push arm and slide arm configurations, the combination of these design features and the almost silent operation of the mechanism give the doorway a seamless, “Zero Touch” operation.
Designed to comply with Australian Standards, the iSwing is packed with a multitude of features and options, from electric locks, UPS battery backup to instant access via radio transmitter remote controls.
NEW FEATURE DESIGN WITH SINGLE SAFETY COVER
ADIS now offers the option of a one piece, double door opener. This slimline option offers a single discrete cover to conceal your automation, giving a sleek modern look.
Not only is the iSwing energy-efficient, but it’s also designed for smooth integration with other modern technologies such as swipe card readers and fire alarm systems.
The iSwing Door Operator complies with Australian standard AS5007 requirement for the safe operation by either of two methods.
A- The speed of the door is limited to greater than 3 seconds to open or close or.
B- Presence safety sensors are fitted to each door leaf to detect persons in the doors path whilst closing.
Electric Lock and UPS battery back-up options.
• The operator has in built circuitry to operate electric locking systems as a standard feature, various electric lock options are available to suit the design of the doorway, these include magnetic locks and electric lock latch keeper sets.
• To ensure continuous security when the door is locked and fire exit compliance the iSwing has an option for uninterrupted power supply (UPS) battery reserve backup, this optional extra allows for the doorway to be as seamless as possible and responsive to card read or fire alarm systems.
Safety Systems
The iSwing Door Operator complies with Australian standard AS5007 requirement for the safe operation by either of two methods
A- The speed of the door is limited to greater than 3 seconds to open or close or.
B- Presence safety sensors are fitted to each door leaf to detect persons in the doors path whilst closing.
Features
•  Slimline design
•  Designed to comply with Aust Standards
•  High security locking option
•  Push n Go function
•  UPS battery backup option
•  Energy efficient low power consumption
•  Silent operation
